86pARTs | Gauge Holder 2x 52mm Steering Wheel | GT86 BRZ I

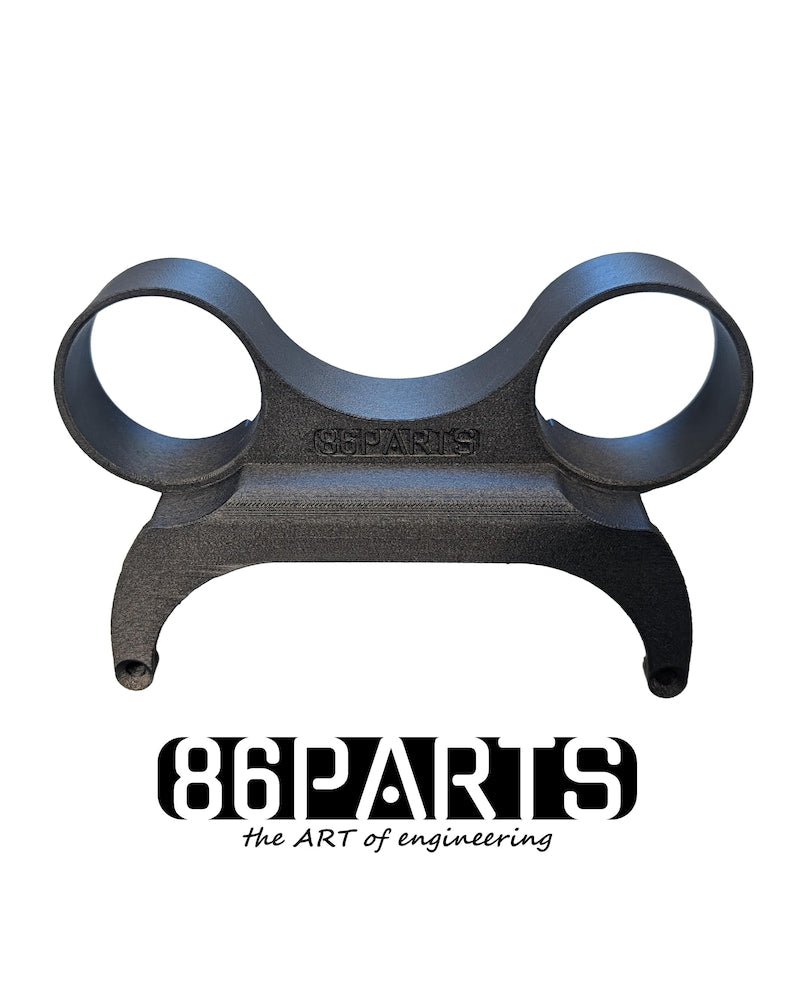

The 86pARTs dual gauge pod is the clean solution if you want to install two auxiliary gauges in your Toyota GT86 or Subaru BRZ without unnecessarily cluttering the interior. The holder sits on the original steering column trim and offers space for two classic 52 mm gauges.

Especially for GT86 and BRZ models driven sportily, auxiliary gauges for oil temperature, oil pressure, boost pressure or other important vehicle values are a sensible addition. The position directly behind the steering wheel keeps the gauges well in view, without overloading the center console or looking like a universal retrofit solution.

Custom-fit solution for the interior

The mount was specially developed for the Toyota GT86 and Subaru BRZ and uses the original mounting points of the steering column cover. The gauge pod is screwed to the OEM points and additionally secured in the upper area with 3M adhesive tape. This creates a stable and at the same time clean mounting without major changes to the interior.

The necessary screws are already included in the scope of delivery.

Clever cable routing

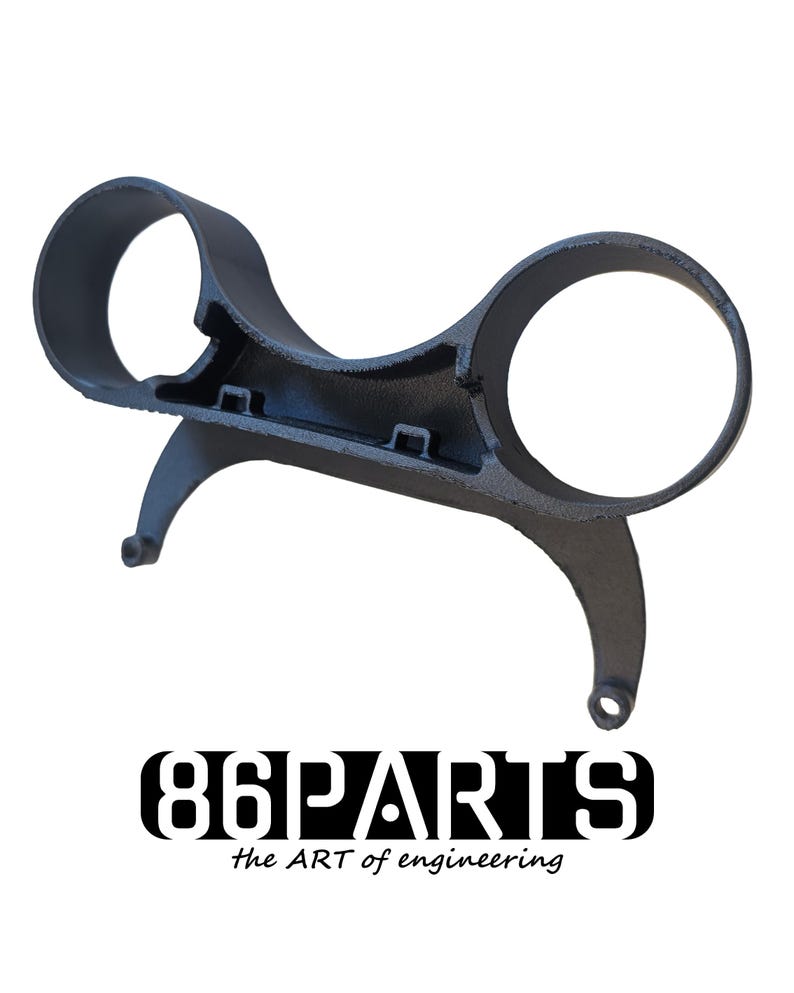

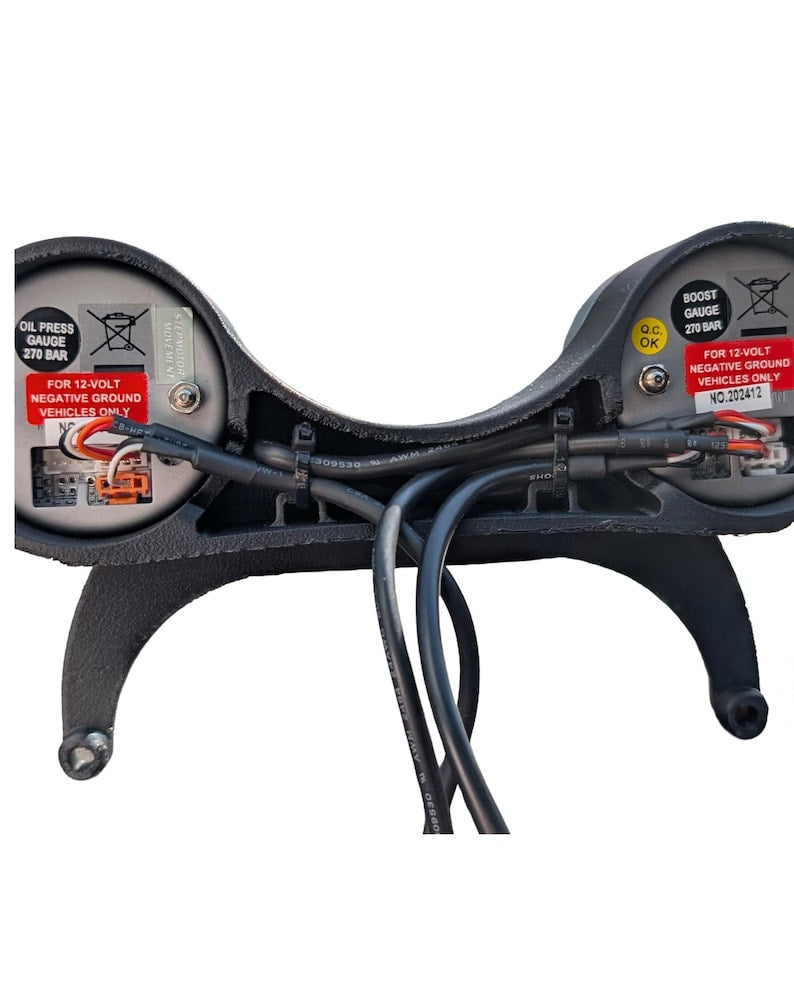

On the back there is an integrated cable pocket, through which the cables of the auxiliary gauges can be routed neatly. In addition, two cable tie tabs are integrated, with which the lines can be fixed neatly.

This not only ensures a tidy installation, but also prevents loose cables behind the steering column trim. Especially with multiple sensor and power lines, this clean cable routing is a clear advantage over simple universal holders.

For two 52 mm auxiliary gauges

The holder is designed for two auxiliary instruments with a diameter of 52 mm. This makes it ideal for classic combinations such as oil temperature and oil pressure or, in supercharged vehicles, for boost pressure and another engine value.

Especially with track tools, turbo or supercharger conversions, oil cooler retrofits or generally sportily driven vehicles, reliable monitoring of relevant temperatures and pressures is a real added value.

Material and manufacturing

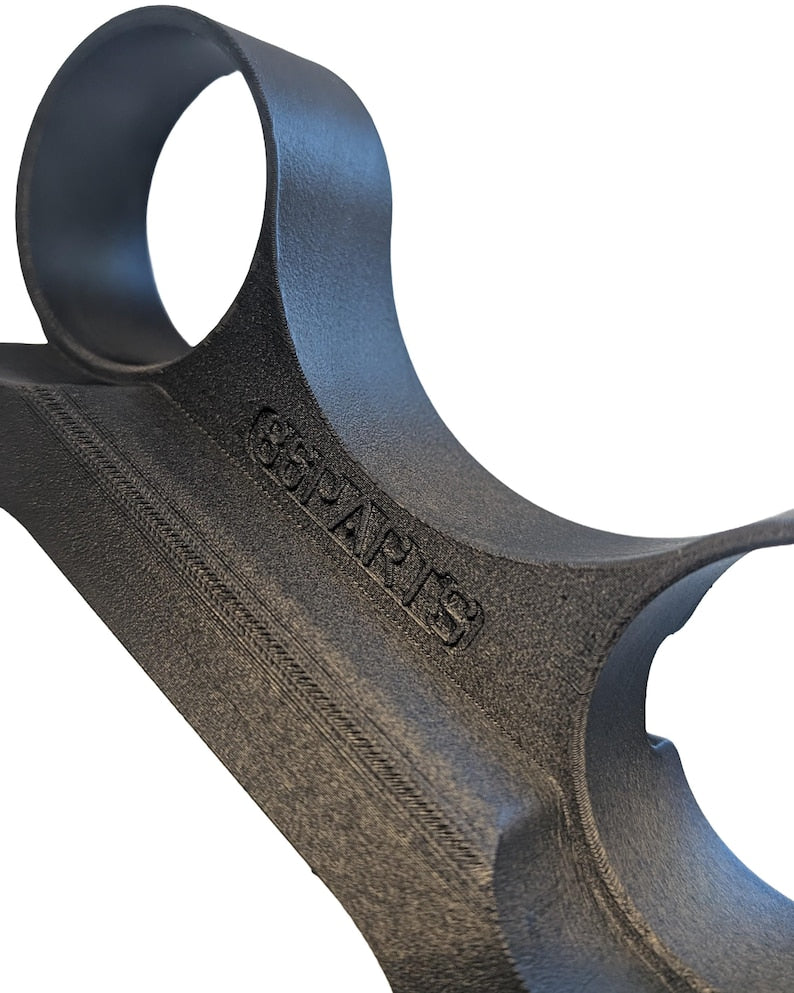

The holder is manufactured using 3D printing from a high-strength plastic with carbon fibers. This creates a lightweight and stable component that is designed for use in the vehicle interior.

Depending on the manufacturing process, slight visible print structures may be present. This is normal for 3D-printed performance components and is not a defect, but part of the manufacturing process.

Details

• Suitable for Toyota GT86 and Subaru BRZ
• For two auxiliary gauges with 52 mm diameter
• Mounting on the original steering column trim
• Screwed to OEM mounting points
• Additional fixation in the upper area with 3M adhesive tape
• Integrated cable pocket on the back
• Two cable tie tabs for clean cable fixation
• Screws included in the scope of delivery
• Auxiliary gauges not included in the scope of delivery

Conclusion

The 86pARTs dual gauge pod is a well-thought-out and vehicle-specific solution for all GT86 and BRZ drivers who want to keep an eye on important engine values in a clean way. The combination of OEM mounting, additional 3M fixation and integrated cable routing makes the holder significantly cleaner than universal solutions and ensures a harmonious installation in the interior.
